Bar Configurator
Welcome to our Bar Configurator
Here you have the chance to build your personal custom carbon kite bar.
Create a complete bar by adding a minimum of one component at each of the first five categories.
This complete bar will come fully assembled, trimmed and ready to fly.
You can just buy a single component (e.g. Control Bar only, Trim System, Flying Lines, Line Connectors or a Release System) by adding them to the cart individually. You will find all our
spare parts here: Spare
Parts
We are also equipped to create all kinds of customized rigging or line/rope solutions for you. If there is anything missing or you have a special request please mention that in
the notes at the end of the ordering process or send us an email to: info@skshapes.com
1. Control Bars
We are offering two types of bars: UniqueBar & PrimeBar.
Leader Lines with knot ladder in red and black colors are included.
2. Rigging
If you are looking for a simple and short rigging solution for freeride foiling you should go for the 1:2 ratio trim system.
If free-racing or course racing is your favoured riding style, we highly recommend the 1:4 ratio trim system for precise and effortless trimming.
The length of the depower throw/travel corresponds to the covered part of the depower line. The trim range of the adjuster/pulley system is standard at 30cm. This means that the
total depower capacity of the system will be the length of the depower throw/travel + 30cm.
The depower line will be covered with a smooth Dyneema® sleeve to protect the single braid core. If you prefer the depower line to be covered with a PU tube, please mention this in the
notes.

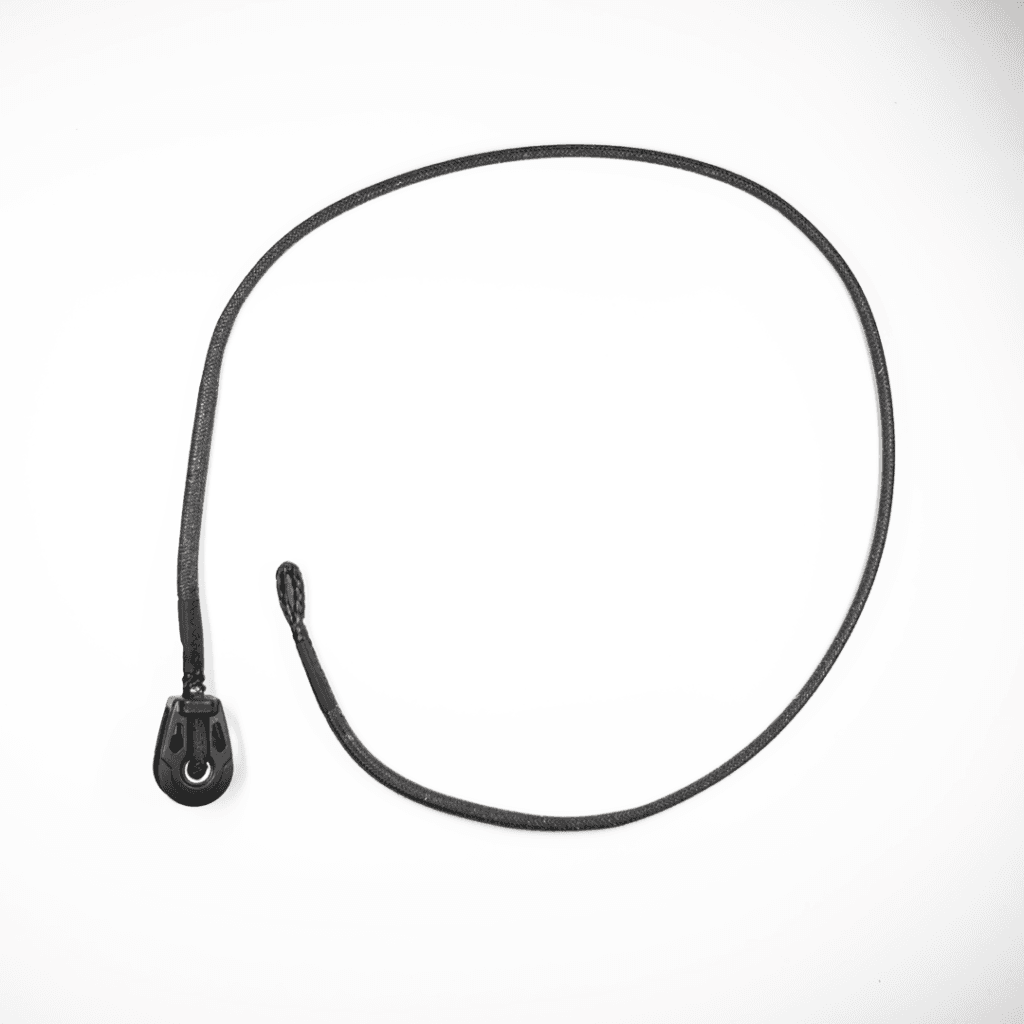

Trim System 1:4
Freerace/Competition Race
180,00 €
incl. VAT, shipping costs apply
- Available
- 7-10 days1
3. Flying Lines
All flying lines are spliced in-house by using the strongest, low elongation, abrasion and UV-resistant Dyneema®-Fiber to date. The ends of all lines are double lock spliced by hand and pre-stretched. All lines of a set are equal in length. Flying lines sets shorter than 10m will not be shipped on a line winder. Custom lengths or different combination/variation of lines can be made on request.
Race/Freeride
Backlines: 1.1mm (290kg) grey
Frontlines: 1.4mm (380kg) yellow
39,00 €
incl. VAT, shipping costs apply
- Available
- 7-10 days1
Freeride
Backlines: 1.1mm (300kg) blue
Frontlines: 1.6mm (425kg) white
39,00 €
incl. VAT, shipping costs apply
- Available
- 7-10 days1
Freestyle/Wave
Backlines: 1.5mm (450kg) blue
Frontlines: 1.6mm (570kg) green
40,00 €
incl. VAT, shipping costs apply
- Available
- 7-10 days1
Race/Competition
Backlines: 0.8mm (170kg) blue
Frontlines: 1.4mm (380kg) yellow
39,00 €
incl. VAT, shipping costs apply
- Available
- 7-10 days1
4. Line Connectors (Pig Tails)
Line Connectors (Pig Tails) are very important for protecting the splice of your flying lines, make it easier to connect and disconect your lines from the kite and on top of that they ensure the compatibility between kites of different brands.
Line Connector (Hydrofoil/Race)
ideal for all RAM-Air Kites
25,00 €
incl. VAT, shipping costs apply
- Available
- 2-5 days1
5. Release Systems
To connect your custom bar with your harness you can choose between several release systems.
If you're not ordering a release system, there will be mounted stainless steel rings to the depower- and safety line so you are able to hook into an already existing safety system on your harness.
Snap Shackle modified
small and light quick release system
75,00 €
incl. VAT, shipping costs apply
- Available
- 2-5 days1
Chicken Loop
commercial quick release system
120,00 €
incl. VAT, shipping costs apply
- Available
- 2-5 days1
6. Accessories & Clothing
Additional accessories and lifestyle products.
SK MiniLeash
short and light safety leash
59,00 €
incl. VAT, shipping costs apply
- Available
- 2-5 days1

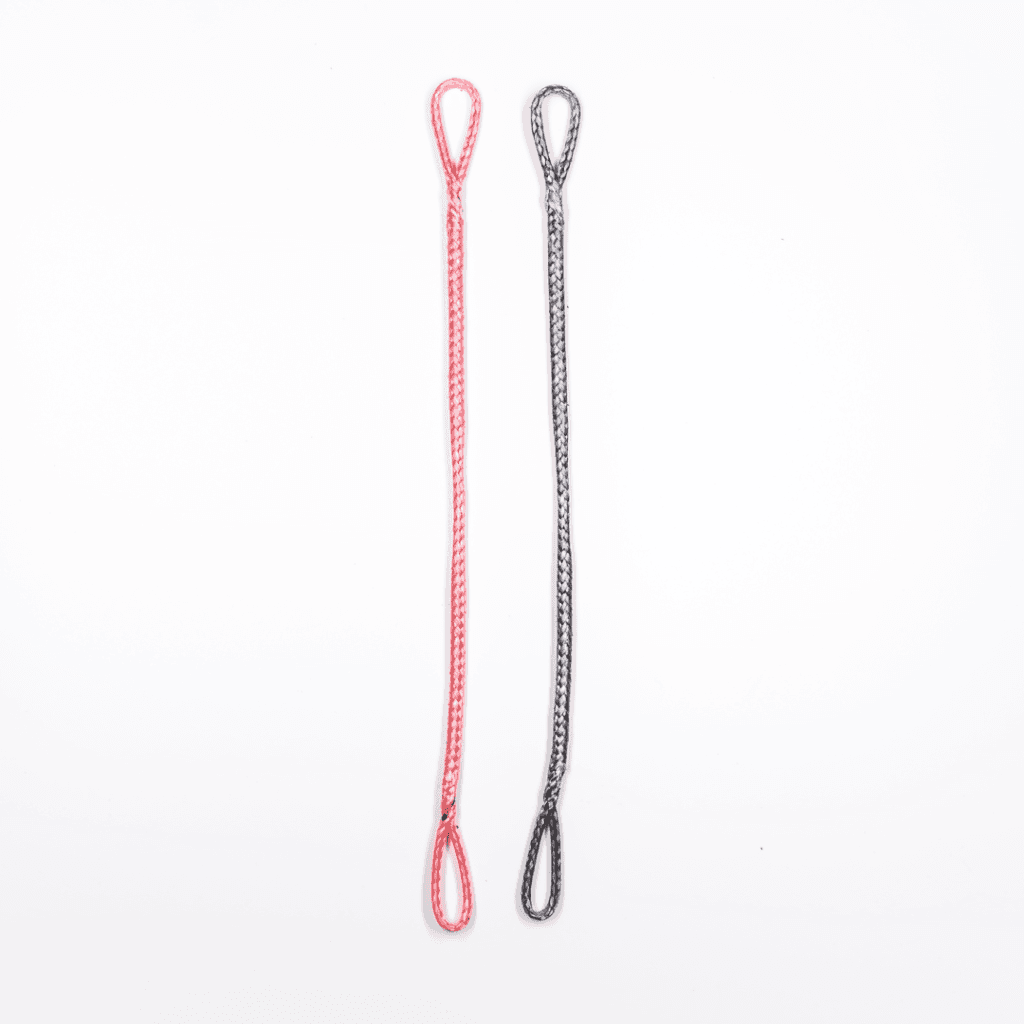

Mini Extensions
for adjusting the trim of the flying lines
15,00 €
incl. VAT, shipping costs apply
- Available
- 2-5 days1
Brake Line
comfortable and strong brake handle for ram air kites
25,00 €
incl. VAT, shipping costs apply
- Available
- 2-5 days1
Shirt Unisex
60% recycled organic cotton
40% recycled polyester
25,00 €
incl. VAT, shipping costs apply
- On Request
Shirt Women
100% organic cotton
EarthPositive® (Climate Neutral)
25,00 €
incl. VAT, shipping costs apply
- On Request
SK Shapes Sticker
plotted outdoor sticker
0,50 €
incl. VAT, shipping costs apply
- Available
- 2-5 days1
